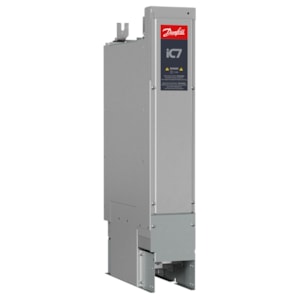

MÁY BIẾN TẦN DANFOSS IC7-60SAIN05-1100E00F4+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK03+BL15+CAC0+CBC1+CCX0+CD - C/N 137N9450

Gross weight

160 Kilogram

Net weight

130 Kilogram

Volume

754 Liter

EAN

5715253676128

Product series

+DAAU

iC7-Automation

Product group

IC7-60

iC7-60

Product category

SA

System module, air-cooled

Product type

IN

Inverter module, INU

Mains voltage

05

380-500 V AC

Current rating

-1100

1100 A

Power rating

630

630 kW/900 HP

Salescode part 5

+CIX0+CJX0+DAAU

+CIX0+CJX0+DAAU

Protection rating

E00

IP00/Open Type

EMC category

F4

C4 category

Integration unit

+AEXX

None

Mains input device

+AJXX

None

DC fuses and devices

+AKXX

None

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDC1

I/O and Relay Option OC7C1

Functional safety

+BEXX

None, not upgradable

Control panel

+BF20

Control Panel 2.8 OPX20

Control panel mounting type

+BGK1

Flush mount

Control panel cable length

+BH15

1.5 m (5 ft)

Control unit cable length

+BK03

0.3 m (1 ft), Fiber

StarCoupler board cable length

+BL15

1.5 m (5 ft), Fiber

Option slot A

+CAC0

General Purpose I/O OC7C0

Option slot B

+CBC1

I/O and Relay Option OC7C1

Option slot C

+CCX0

None

Option slot D

+CDX0

None

Option slot E

+CEX0

None

Option slot F

+CFX0

None

Option slot G

+CGX0

None

Option slot H

+CHX0

None

Option slot I

+CIX0

None

Option slot J

+CJX0

None

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGXX

None

Documentation language

+EHXX

Multi-language

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

2XIM10

2xIM10

Modelcode01

IC7-60SAIN05-1100E00F4

Modelcode03

+BAMT+BDC1+BEXX+BF20

Modelcode04

+BGK1+BH15+BK03+BL15+CAC0+CBC1

Modelcode05

+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0

Modelcode06

+CIX0+CJX0+DAAU

Main unit Width

2x170mm/6.7in

2x170mm/6.7in

Main unit Height

990mm/39in

990mm/39in

Main unit Depth

502mm/19.8in

502mm/19.8in

Calculated Gross Weight [kg]

160

Calculated Net Weight [kg]

130

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

AC voltage

3X0-400/460/500VAC

3X0-400/460/500VAC

Continous current IH (1/5min)

913A(400VAC)/855A(460VAC)

913A(400VAC)/855A(460VAC)

Continous current IL (1/5min)

1100A(400VAC)/1030A(460VAC)

1100A(400VAC)/1030A(460VAC)

Cooling circuit connector type

+ANXX

Not relevant

Cooling circuit hose length

+AOXX

Not relevant

Cooling type

Air Cooled

Air Cooled

DC Bus current

1280A(540VDC)

1280A(540VDC)

DC Bus voltage

465-740VDC

465-740VDC

DC power

691kW(540VDC)

691kW(540VDC)

Enclosure rating

IP00 / OPEN TYPE

IP00 / OPEN TYPE

Extra environmental protection

+AGCX

Coated boards

Marine construction

+AFXX

None

Nominal AC current

1123A(400VAC)/1052A(460VAC)

1123A(400VAC)/1052A(460VAC)

Output frequency

0-590Hz

0-590Hz

Overload current IH (1/5min)

1370A(400VAC)/1283A(460VAC)

1370A(400VAC)/1283A(460VAC)

Overload current IL (1/5min)

1210A(400VAC)/1133A(460VAC)

1210A(400VAC)/1133A(460VAC)

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, air-cooled

System module, air-cooled

Product Type - DrivesSymbol

Inverter module

Inverter module

Salescode part 1

IC7-60SAIN05-1100E00F4

IC7-60SAIN05-1100E00F4

Salescode part 2

+BAMT+BDC1+BEXX+BF20

+BAMT+BDC1+BEXX+BF20

Salescode part 3

+BGK1+BH15+BK03+BL15+CAC0+CBC1

+BGK1+BH15+BK03+BL15+CAC0+CBC1

Salescode part 4

+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0

+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0

Short circuit current rating

100kA

100kA

Start current Imax (3sec)

1553A

1553A

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F

Typical motor power PH2 (150%)

500kW(400VAC)/650Hp(460VAC)

500kW(400VAC)/650Hp(460VAC)

Typical motor power PL (110%)

630kW(400VAC)/850Hp(460VAC)

630kW(400VAC)/850Hp(460VAC)
