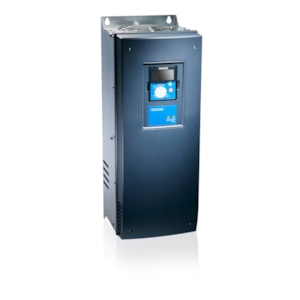

MÁY BIẾN TẦN DANFOSS NXP00725-A2T0SSV-A1A2000000 - C/N 136H9211

Gross weight

36 Kilogram

Net weight

35 Kilogram

EAN

5710108757595

Product Group

NXP

NXP Frequency Converter

Customized Drive

+BM26

Vacon Dark Grey NXP

Mechanical Modification

S

Standard air cooled drive

Mains voltage

5-

380 – 500 Vac (465-800 Vdc)

Current

0072

72 Amp

Control Keypad

A

Alpha-numeric display

Enclosure

2

IP21/NEMA1

EMC emission levels

T

IEC61800-3 for IT networks

Brake Chopper

0

No Brake

Electrical Modification

S

6-pulse with choke

Card Modifications

V-

DirectConn. w Varnished Boards

Shipping Package

+GSCB

Cardboard box as Shipping pack

Warranty

+WT01

Warranty 12/18 months

Gland Plate Option

+QGLC

Inch conduit plate

Option Slot A

A1

6DI,DO,2AI,1AO,+10Vr,+24V

Option Slot B

A2

2RO(NO/NC)

Option Slot C

00

No board

Option Slot D

00

No board

Option Slot E

00

No board

Firmware language package

+FL22

UK,FR,IT,ES,PT;WestEur

Documentation Level

+DQCK

Quick guide user manual

Documentation Lang. Preference

+DLUK

English

System Firmware

+FNP02

System software NXP

Software license

NONE

no software license

Application

+A000

No Special Application

Parameter Set

NONE

none

Motor Parameter Default

+LS50

Default Motor frequency 50HZ

Labeling options

+LPC1

no additional labels

Special BoM structure

+SPC0

Standard BoM Configuration

CE Approval

+GACE

CE Approval

UL Approval

+GAUL

UL approval

RCM Approval

+GACT

RCM Approval N16307

Marine approval

NONE

no marine approval

KC Approval

+GAKC

Korean Approval

Ukrainian Approval

+GAUA

Ukrainian Approval

EAC Approval

+GAEA

EAC Approval

Region

-R00

International (-R00)

Frame Size

FR07

Frame 07

Power rating

37K

37 kW/50 HP

Customer specific power variat

NONE

Normal power rating

Modelcode01

NXP00725-A2T0SSV-

Modelcode02

A1A2000000

Calculated Net Weight [kg]

35

Calculated Gross Weight [kg]

36

Motor Power Low Overload [kW]

37

37

Motor Power High Overload [kW]

30

30

Dimensions WxHxD [mm]

237X591X257

237X591X257

Continuous Current (HO) [A]

61

61

Continuous Current (NO) [A]

72

72

Product Catalog

NO_VIEW

NO VIEW

Salescode part 2

A1A2000000

Calculated Net Weight

35

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a
