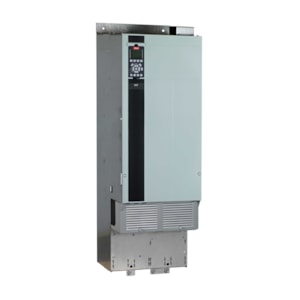

MÁY BIẾN TẦN DANFOSS FC-302N110T5E20H2BGCXXXSXXXXAXBXCXRXXDX - C/N 134H6297

Gross weight

77 Kilogram

Net weight

72 Kilogram

Volume

255.881 Liter

EAN

5710107714285

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

N110

(N110) 110 KW / 150 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

B

Brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

R

MCB-113 Ext. Relay Card

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

D3H

D3H

Modelcode01

FC-302N110T5E20H2BGC

Modelcode02

XXXSXXXXAXBXCXRXXDX

Power 150% (HO) [KW]

110

110

Power 110% (NO) [KW]

132

132

Power Loss HO [W]

2289

2289

Power Loss HO [W]

2051

2051

Power Loss NO [W]

2724

2724

Power Loss NO [W]

2954

2954

kVA

147

147

Continuous Current (HO) [A]

212

212

Intermittent Current (HO) [A]

318

318

Continuous Current (HO) [A]

190

190

Continuous Current (NO) [A]

240

240

Intermittent Current (HO) [A]

285

285

Intermittent Current (NO) [A]

286

286

Continuous Current (NO) [A]

260

260

Intermittent Current (NO) [A]

264

264

Height [mm]

909,0

909,0

Height w/ Regen/Loadshare [mm]

1004,0

1004,0

Width w/ no C options [mm]

250,0

250,0

Depth [mm]

375,0

375,0

Depth with Option A/B [mm]

375,0

375,0

Calculated Gross Weight [kg]

62.3

Calculated Net Weight [kg]

62

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a
