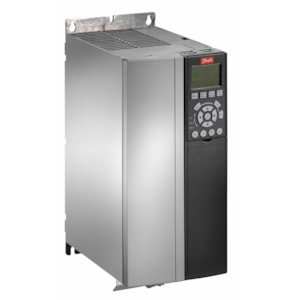

MÁY BIẾN TẦN DANFOSS FC-302P15KT5E20H1XGCXXXSXXXXALBXCXXXXDX - C/N 131N7560

Gross weight

12.44 Kilogram

Net weight

11.42 Kilogram

Volume

57.585 Liter

EAN

5702427885394

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P15K

(P15K) 15 KW / 20 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AL

PROFINET MCA 120

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

B3

B3

Modelcode01

FC-302P15KT5E20H1XGC

Modelcode02

XXXSXXXXALBXCXXXXDX

Power 160% (HO) [KW]

15

15

Power 110% (NO) [KW]

18.5

18.5

Power Loss HO [W]

379

379

Power Loss HO [W]

379

379

Power Loss NO [W]

465

465

Power Loss NO [W]

465

465

kVA

22.2

22.2

Continuous Current (HO) [A]

32

32

Intermittent Current (HO) [A]

51.2

51.2

Continuous Current (HO) [A]

27

27

Continuous Current (NO) [A]

34

34

Intermittent Current (HO) [A]

43.2

43.2

Intermittent Current (NO) [A]

41.2

41.2

Continuous Current (NO) [A]

37.5

37.5

Intermittent Current (NO) [A]

37.4

37.4

Height [mm]

399,0

399,0

Width w/ no C options [mm]

165,0

165,0

Width w/ two C options [mm]

225,0

225,0

Depth [mm]

249,0

249,0

Depth with Option A/B [mm]

262,0

262,0

Calculated Gross Weight [kg]

12.44

Calculated Net Weight [kg]

11.42

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a
