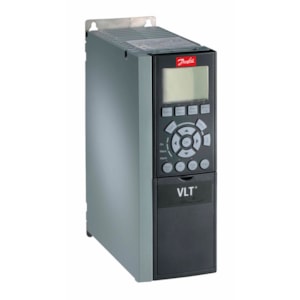

MÁY BIẾN TẦN DANFOSS FC-202P3K0T4E20H1XGXXXXSXXXXAXBXCXXXXDX - C/N 131B8914

Gross weight

5.386 Kilogram

Net weight

4.54 Kilogram

Volume

21.569 Liter

EAN

5702427378933

Product Group

FC-

VLT^® AQUA Drive FC-

Series

202

202

Power Rating

P3K0

(P3K0) 3.0 KW / 4.0 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Height [mm]

268,0

268,0

Width w/ no C options [mm]

90,0

90,0

Width w/ two C options [mm]

150,0

150,0

Depth [mm]

205,0

205,0

Depth with Option A/B [mm]

220,0

220,0

Modelcode01

FC-202P3K0T4E20H1XGX

Modelcode02

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

3

3

Power 110% (NO) [KW]

3

3

kVA

4.99

4.99

Power Loss HO [W]

116

116

Power Loss HO [W]

116

116

Power Loss NO [W]

116

116

Power Loss NO [W]

116

116

Continuous Current (HO) [A]

7.2

7.2

Intermittent Current (HO) [A]

10.8

10.8

Continuous Current (HO) [A]

6.3

6.3

Intermittent Current (HO) [A]

9.45

9.45

Continuous Current (NO) [A]

7.2

7.2

Intermittent Current (NO) [A]

7.92

7.92

Continuous Current (NO) [A]

6.3

6.3

Intermittent Current (NO) [A]

6.93

6.93

Calculated Gross Weight [kg]

5.386

Calculated Net Weight [kg]

4.54

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a
