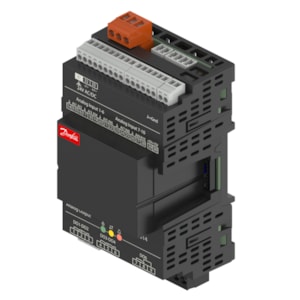

I/O module, AS-XP05 - C/N 080G6014

Gross weight

262 Gram

Net weight

157 Gram

Volume

1.152 Liter

EAN

5715162703373

Type

AS-XP05

Product group

Programmable controllers

Product Name Description

I/O module

Analog inputs (AI) [pc]

10 pc

Analog outputs (AO) [pc]

2 pc

Application area

Programmable controller

Approval

CE; EAC; RCM; UA; UL Recognized

Buzzer

No

CE mark

Yes

China RoHS compliance

Yes with exemptions

Connector kit Code No.

080G6034

Connector kit included

Yes

Contains batteries

No

Digital inputs (DI) [pc]

10 pc

Digital outputs (DO) [pc]

5 pc

Display type

Without display

Enclosure rating IP

IP20

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c); 7(a); 7(c)-I

Function

I/O module

Mounting method

DIN rail

Packing format

Single pack

Power consumption [W]

5 W

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Real time clock

No

SCIP dossier no.

f6a8bbab-dc0b-43fa-9dfc-333bc0e30907

SCIP dossier product name

ALSMART SCIP-2

Serviceable

No

Type designation

AS-XP05 S

UL mark

Yes
