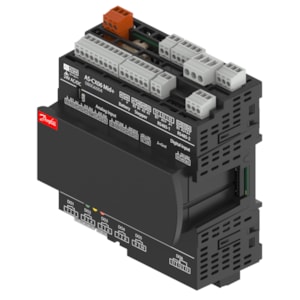

BỘ ĐIỀU KHIỂN CHƯƠNG TRÌNH DANFOSS 6 relays, AS-CX06 Mid+ - C/N 080G6004

Gross weight

0.409 Kilogram

Net weight

0.356 Kilogram

Volume

1.315 Liter

EAN

5715162703274

Type

AS-CX06

Product group

Programmable controllers

Product Name Description

Program. controller, 6 relays

Analog inputs (AI) [pc]

10 pc

Analog outputs (AO) [pc]

3 pc

Application area

Programmable controller

Approval

CE; EAC; RCM; UA; UL Recognized

Battery back-up [V] DC [max]

42 V

Battery back-up [V] DC [min]

18 V

Buzzer

No

CE mark

Yes

China RoHS compliance

Yes with exemptions

Communication type

2xRS485 ; CAN-FD; RJ11 (CAN) to User Interface; USB-C

Connector kit Code No.

080G6030

Connector kit included

Yes

Contains batteries

No

Control of Stepper driver [pc]

1 pc

Digital inputs (DI) [pc]

12 pc

Digital outputs (DO) [pc]

6 pc

Display type

Without display

Enclosure rating IP

IP20

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c); 7(a); 7(c)-I

Frequency [Hz]

50/60 Hz

Function

Programmable Controller

Mounting method

DIN rail

Packing format

Single pack

Power consumption [W]

30 W

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Lead titanium trioxide (CAS no. 12060-00-3)

Real time clock

Yes

SCIP dossier no.

a6e73266-ea69-4ddb-b924-d68a0803110b

SCIP dossier product name

ALSMART SCIP-1

Serviceable

No

Supply voltage [V] AC

24 V

Supply voltage [V] DC [max]

60 V

Supply voltage [V] DC [min]

24 V

Type designation

AS-CX06 Mid+

UL mark

Yes
