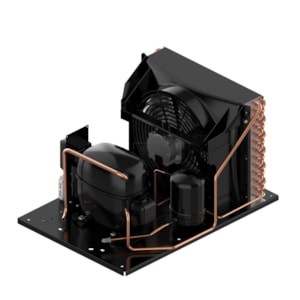

MÁY NÉN LẠNH DANFOSS Optyma™, OP-SC21CLXT0 - SC21CL 114E2647

Mã sản phẩm: 114E2647

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

MÁY NÉN LẠNH DANFOSS Optyma™, OP-SC21CLXT0 - SC21CL 114E2647

Product details

Air flow @ 50Hz [m³/h]	1150 m³/h
Applications	LBP
China RoHS compliance	Out of scope
Compressor model	SC21CL
Compressor power supply [V]	230/1/50
Condenser type	BG_6
Contains batteries	No
Description	OP-SC21CLXT0
Electrical code	G
EU RoHS compliance	Out of scope
Family	Optyma^™
Fan blade size [mm]	300 mm
Fan cowl/grill type	Grill
Fan current @ 50Hz [A]	0.18 A
Fan diameter [mm]	300 mm
Fan power consumption @ 50Hz [W]	29 W
Fan power output @ 50Hz [W]	14 W
Fan power supply [V/Ph/Hz]	230/1/50
Fan voltage @ 50Hz (max) [V] [Max]	253 V
Fan voltage @ 50Hz (max) [V] [Min]	207 V
Frequency [Hz]	50 Hz
High value of nominal voltage at 60Hz [V]	253 V
Length [mm]	610 mm
Low value of voltage range at 60Hz [V]	207 V
Model number	OP-SC21CLXT0
No. of phases (compressor)	1
No. of phases (fan)	1
Number of fans	1
Phase	1
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Receiver approval	CE
Receiver volume [L]	1.1 L
Refrigerants	R404A; R507A
RLA	4 A
SCIP dossier no.	f9a3f774-d2f8-4af3-a234-1eafee97cb4e
SCIP dossier product name	OPTYMA N0 N2 T0 T2
Segment usage	Low Back Pressure
Speed Platform	Fixed-speed
Total height [mm]	348 mm
Version	T0
Voltage 50Hz [V]	207 V
Voltage 50Hz [V] [Max]	253 V
Width [mm]	445 mm
