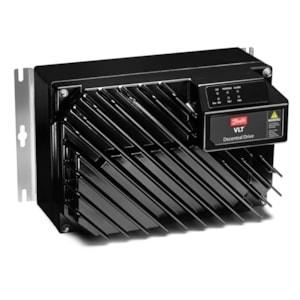

MÁY BIẾN TẦN DANFOSS VLT Decentral Drive FCD 302 3KW - C/N 137G2243

Gross weight

14.2 Kilogram

Net weight

13.9 Kilogram

Volume

39.938 Liter

EAN

5715253281919

Product View (Switch)

GLBL

Global (Standard)

Product Group

FCD

VLT^® DecentralDrive FCD

VLT Series

302

302

Power Rating

P3K0

3.0 kW / 4.0 HP

Mains Voltage

T4

380-480VAC (Three phased)

Enclosure

B66

Standard Black IP66/NEMA4X

RFI Filter

H1

RFI Class A1/C2

Brake

S

Brake chop. + mech. brake

Hardware Configuration

3

Compl. large stand alone

Brackets

E

Flat brackets

Threads

M

Metric threads

Switch Option

X

No switch option

Display

C

With display connector

Sensor Plugs

X

No sensor plugs

Motor Plug

X

No motor plug

Mains Plug

X

No mains plug

Fieldbus Plug

X

No fieldbus plug

Reserved

X

Reserved

A Option

AX

No fieldbus option

B Option

BX

No B option

Reserved for SW

XXXXX

Reserved for SW

D Option

D0

24VDC back-up input

FCD302 Frame Size

MF2

(MF2) MF2

Typecode Part 1

FCD302P3K0T4B66H1S3EMXCXXXXX

Typecode Part 2

AXBXXXXXXD0

Product Catalog

NO_VIEW

NO VIEW

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Calculated Gross Weight [kg]

14.2

Calculated Net Weight [kg]

13.9

Plant from Orderline

B901

B901

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FCD302P3K0T4B66H1S3EMXCXXXXX

Modelcode02

AXBXXXXXXD0

Recommended Plant

ERR01

ERR01
