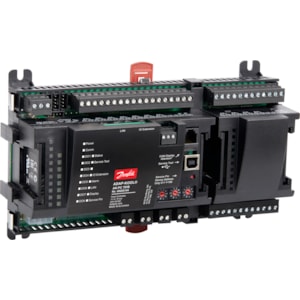

BỘ ĐIỀU KHIỂN GÓI DANFOSS AK-PC 781A - C/N 080Z0191

Gross weight

0.95 Kilogram

Net weight

0.645 Kilogram

Volume

5.68 Liter

EAN

5702428930550

Type

AK-PC 781A

Product group

Compressor/condenser control

Product Name Description

Pack controller

Addit. thermostats inputs max.

5 pc

Addit.press.switche inputs max

5 pc

Additional alarm inputs max.

10 pc

Additional analog inputs max.

5 pc

Analog inputs (AI) [pc]

11 pc

Application area

Capacity control

Approval

C-TICK; CE; EAC; LLC CDC TYSK; cURus

Capacity control input

Pressure/ Temperature

Capacity control mode

PI

CE mark

Yes

China RoHS compliance

Out of scope

Communication type

IO Extension; LON RS485; RJ11 (CAN) to Display; USB-B to PC

Compressor capacity mode

Step/ Speed

Condenser control type

Pressure/ Temperature

Contains batteries

No

Controller type

Pack Controller

Digital outputs (DO) [pc]

8 pc

Display - option

EKA 163B ; EKA 164B ; EKA 166 ; MMIGRS2

Display on front

No

Division

25

Enclosure rating IP

IP10

EU RoHS compliance

Out of scope

Fan capacity control

Step/ Speed

Fan control mode

PI

Frequency [Hz]

50/60 Hz

Function

Pack w. Heat Reclaim

Further information

Transcri.,Speed,CO2,HP,Oil,HR

I/O connectors max.

120 pc

No.of compr. safty signals max

6 pc

No.of extention modules max.

11 pc

Number of Compressors max.

10 pc

Number of fans max.

8 pc

Oil management

Yes, with CO2

Other RoHS documentation

EAEU RoHS

Packing format

Single pack

PFAS content [Yes/No]

No

Power consumption [VA]

8 VA

Product accessories

Electron. control accessories

Product features

CO2 compliant
Condenser error monitoring
External comm. included
Floating condenser pressure
Heat recovery function
Load shedding
Night setback
P0 optimization
Read more

Product Language

Chinese
Czech
Danish
Dutch
English
Finnish
French
German
Read more

Programming tools

AK-ST 500

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Lead monoxide (PbO, CAS no. 1317-36-8)
Lead titanium zirconium oxide (CAS no. 12626-81-2)
Orange lead (lead tetroxide) (CAS no. 1314-41-6)
Diboron trioxide (B2O3, CAS no. 1303-86-2)
1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4)
2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)

SCIP dossier no.

199e3317-c1b9-4d48-94a0-45825c46791f

SCIP dossier product name

AK-PC-7XX-651A-351

Serviceable

No

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

UL mark

Yes
