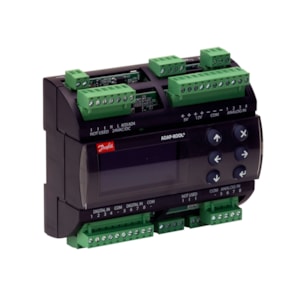

BỘ ĐIỀU KHIỂN DANFOSS AK-PC 551 - C/N 080G0281

Gross weight

662 Gram

Net weight

510 Gram

Volume

2.799 Liter

EAN

5702428843041

Type

AK-PC 551

Product group

Compressor/condenser control

Product Name Description

Pack controller

1 Primary battery SUM weight Kg

0.001

1 Primary battery weight Kg

0.001

Analog inputs (AI) [pc]

8 pc

Analog outputs (AO) [pc]

2 pc

Application area

Capacity control

Approval

CE; CMIM; EAC; cURus

Battery qty

1

Battery type or Name

Lithium coin cell (CR1620)

Capacity control input

Pressure/ Temperature

Capacity control mode

PI

CE mark

Yes

China RoHS compliance

Out of scope

Communication type

MODBUS

Compressor capacity mode

Step/ Speed/ PWM

Condenser control type

Pressure/ Temperature

Contains batteries

Yes

Digital inputs (DI) [pc]

8 pc

Digital outputs (DO) [pc]

8 pc

Display - option

On front. Option: MMIGRS2

Display on front

Yes

Division

25

Equipment

Incl. Connectors

EU RoHS compliance

Out of scope

Fan capacity control

Step/ Speed

Fan control mode

PI

Frequency [Hz]

50/60 Hz

Function

2 Suction and common Condenser

Further information

Relays 5,6 solid state type

Mounting method

DIN rail

Number of Compressors max.

8 pc

Other RoHS documentation

EAEU RoHS

Packing format

Multi pack

PFAS content [Yes/No]

No

Power consumption [W]

10 W

Product accessories

Electron. control accessories

Product features

Buzzer
Compressor safety
Discharge gas temp. safety
Fan safety
Floating condenser pressure
Heat recovery function
High pressure safety
LCD display built in
Read more

Product Language

Croatian
Czech
Danish
Dutch
English
French
German
Hungarian
Read more

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Lead titanium zirconium oxide (CAS no. 12626-81-2)
Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3)
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)

SCIP dossier no.

2a449873-2656-48ab-8705-a67d762ee731

SCIP dossier product name

AK-PC 551, Control 24V LCD2SSR RS485 S.

Serviceable

No

Supply voltage [V] AC [max]

230 V

Supply voltage [V] AC [min]

110 V

Type designation

AK-PC 551

UL mark

Yes
