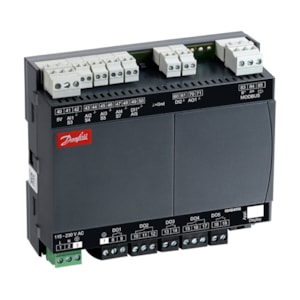

BỘ ĐIỀU KHIỂN DANFOSS AK-CC55 Water Loop - C/N 084B4158

Gross weight

0.322 Kilogram

Net weight

0.253 Kilogram

Volume

0.681 Liter

EAN

5715162507971

Type

AK-CC55 Water Loop

Product group

Evaporator and room control

Product Name Description

Case/room controller (TXV)

Analog inputs (AI) [pc]

5 pc

Analog outputs (AO) [pc]

1 pc

Application area

Refrigeration control

Approval

CE; CMIM; EAC; RCM; UA; cURus

CE mark

Yes

China RoHS compliance

Yes with exemptions

Communication built-in

MODBUS

Communication type

MODBUS

Contains batteries

No

Controller type

Case Contr. Water Loop

Digital inputs (DI) [pc]

1 pc

Digital outputs (DO) [pc]

5 pc

Display - option

AK-UI55

Display on front

No

EEE category

5 small equipment (any external dimension < 50 cm)

EPD available

Yes

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c); 7(a); 7(c)-I

Frequency [Hz]

50/60 Hz

Function

5 Relays, Semi/ Plug-in

Further information

12 pc without terminals

Identical product

084B4058

In scope of WEEE

Yes

Number of Compressors max.

2 pc

Number of Evaporators max.

1 pc

Other RoHS documentation

EAEU RoHS

Packing format

Industrial pack

Power consumption [VA]

5 VA

Product features

Alarm management
Alarm output
Bus communication
Compressor safety
Condenser error monitoring
Defrost Sequence
Manual operation
Night setback
Read more

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Lead monoxide (PbO, CAS no. 1317-36-8)
Lead titanium zirconium oxide (CAS no. 12626-81-2)
Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3)
Orange lead (lead tetroxide) (CAS no. 1314-41-6)
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)

SCIP dossier no.

c43067a3-9294-49f8-9584-9828ad0e9778

SCIP dossier product name

Case controller

Sensor connection

Screw terminals

Supply voltage [V] AC [max]

230 V

Supply voltage [V] AC [min]

115 V

Temp. sensor support

NTC 5000; NTC10000; PTC 1000; Pt 1000

UL mark

Yes
