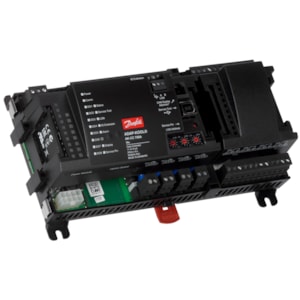

BỘ ĐIỀU KHIỂN DANFOSS AK-CC 750 - C/N 080Z0139

Gross weight

0.932 Kilogram

Net weight

0.645 Kilogram

Volume

6.248 Liter

EAN

5702428901314

Type

AK-CC 750

Product group

Evaporator and room control

Product Name Description

Case/room controller (EEV)

Analog inputs (AI) [pc]

11 pc

Application area

Refrigeration control

Approval

CE; cURus

CE mark

Yes

China RoHS compliance

Out of scope

Communication type

LON RS485

Contains batteries

No

Controller type

Case/Room controller (4 AKV)

Digital outputs (DO) [pc]

8 pc

Display - option

EKA 163A; EKA 164B

Display on front

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c); 7(a); 7(c)-I

Frequency [Hz]

50/60 Hz

Function

1-4 AKV(EEV), Flexible I/O

Further information

°F/ PSI

Number of Evaporators max.

4 pc

Other RoHS documentation

EAEU RoHS

Packing format

Single pack

Press. Transmitter support

1-5 V; RATIOMETRIC

Product accessories

Electron. control accessories

Product Language

American

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Lead monoxide (PbO, CAS no. 1317-36-8)
Lead titanium zirconium oxide (CAS no. 12626-81-2)
Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3)
Orange lead (lead tetroxide) (CAS no. 1314-41-6)
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)

SCIP dossier no.

c43067a3-9294-49f8-9584-9828ad0e9778

SCIP dossier product name

Case controller

Sensor connection

Screw terminal

Serviceable

No

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

Temp. sensor support

PTC 1000; Pt 1000

UL mark

Yes

Valve output type

AKV (EEV)
