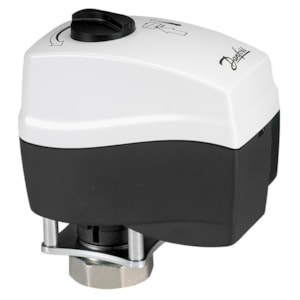

THIẾT BỊ TRUYỀN ĐỘNG ĐIỆN DANFOSS AMV 150, Supply voltage [V] AC: 230 - C/N 082G3090

Gross weight

0.4 Kilogram

Net weight

0.394 Kilogram

Volume

0.978 Liter

EAN

5702421551745

Type

AMV 150

Product group

Electrical actuators

Actuator speed [s/mm]

24 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

District Heating and zone

China RoHS compliance

Out of scope

Closing force [N]

250 N

Contains batteries

No

Control signal type

3-point

Description

AMV 150 230V 24s/mm 5mm 250N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

Grade of enclosure

IP54

Manual operation

Yes

Media temperature [°C] [Max]

150 °C

Position feedback

no - potentiometer needed

Power consumption [W]

8 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

5941c580-cf9b-456d-b3c6-52adde56771d

SCIP dossier product name

AMV (E) 130 - 150

Speed type

Standard

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

5 mm

Supply voltage [V] AC

230 V

Turn time per 90° [s]

0 "
