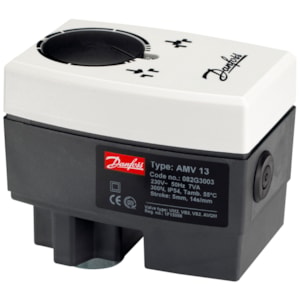

THIẾT BỊ TRUYỀN ĐỘNG ĐIỆN DANFOSS AMV 13, Supply voltage [V] AC: 230 - C/N 082H0071

Gross weight

0.832 Kilogram

Net weight

0.832 Kilogram

Volume

1.694 Liter

EAN

5702425087370

Type

AMV 13

Product group

Electrical actuators

Actuator speed [s/mm]

14 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

District Heating

China RoHS compliance

Out of scope

Closing force [N]

300 N

Contains batteries

No

Control signal type

3-point

Description

AMV 13 230V 14s/mm 300N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

Grade of enclosure

IP54

Position feedback

no - potentiometer needed

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

ebea89b0-e049-4151-bb9c-338b14868406

SCIP dossier product name

AMV(E) 10/13

Speed type

Standard

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Supply voltage [V] AC

230 V
