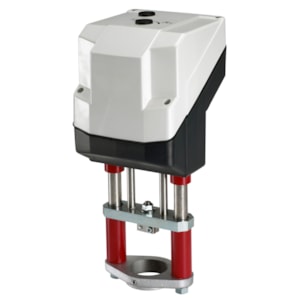

THIẾT BỊ TRUYỀN ĐỘNG ĐIỆN DANFOS AME 86, Supply voltage [V] AC: 24S -C/N 082G1462

Gross weight

11.038 Kilogram

Net weight

11.038 Kilogram

Volume

24.3 Liter

EAN

5702421514009

Type

AME 86

Product group

Electrical actuators

Actuator speed [s/mm]

3 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

HD HVAC and DH

China RoHS compliance

Out of scope

Closing force [N]

5000 N

Contains batteries

No

Control input signal Y [mA]

0(4) - 20 mA

Control input signal Y [mA], impedance [Ohm]

500 Ohm

Control input signal Y [V]

0(2) - 10 V

Control input signal Y [V], impedance [kOhm]

50 kOhm

Control signal type

Modulating/3-point

Description

AME 86 24V 3s/mm 40mm 5000N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Grade of enclosure

IP54

Manual operation

Yes

Position feedback

yes

Power consumption [W]

25 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

1aa24132-5502-41d0-b1ff-216d3124f43f

SCIP dossier product name

AMV(E) 85/86

Speed type

Fast

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

40 mm

Supply voltage [V] AC

24 V

Turn time per 90° [s]

0 "
