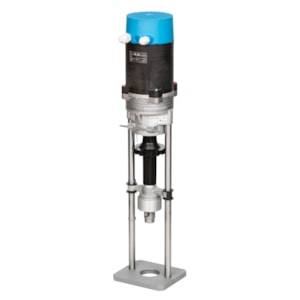

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 855, 24 V AC, 2 s/mm, 80 mm - C/N 082G3510

Gross weight

16.5 Kilogram

Net weight

12 Kilogram

Volume

164.164 Liter

EAN

5702425112331

Type

AME 855

Product group

Gear actuators

Actuator speed [s/mm]

2 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

50 °C

Ambient temperature [°C] [min]

-10 °C

Application

Heating and cooling

China RoHS compliance

Out of scope

Closing force [N]

15000 N

Contains batteries

No

Control signal type

Modulating/3-point

Description

AME 855 24V

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

In scope of WEEE

No

IP protection class

IP54

Manual operation

Yes

Media temperature [°C] [Max]

130 °C

Power consumption [W]

50 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

4770f63f-34f7-44e3-8275-1d3e2d5a205c

SCIP dossier product name

AMV(E) 65x/685/855 - 2

Spindle speed [s/mm]

2 s/mm

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

65 °C

Storage temperature [°C] [Min]

-20 °C

Stroke [mm]

80 mm

Supply voltage [V]

24 V AC
