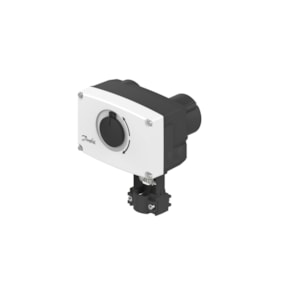

THIẾT BI TRUYỀN ĐỘNG DANFOSS AME 25 SD, 24 V AC, 15 s/mm, 15 mm - C/N 082H3038

Gross weight

2.268 Kilogram

Net weight

2.238 Kilogram

Volume

5.054 Liter

EAN

5702421522011

Type

AME 25 SD

Product group

Gear actuators

Actuator speed [s/mm]

11 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

HVAC

China RoHS compliance

Out of scope

Closing force [N]

450 N

Contains batteries

No

Control input signal Y [mA]

0(4) - 20 mA

Control input signal Y [mA], impedance [Ohm]

500 Ohm

Control input signal Y [V]

0(2) - 10 V

Control input signal Y [V], impedance [kOhm]

24 kOhm

Control signal type

Modulating/3-point

Description

AME 25 SD 24V 15s/mm 15mm 450N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

IP protection class

IP54

Manual operation

Yes

Position feedback

yes

Power consumption [W]

14 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

Yes

SCIP dossier no.

1ca58089-c04d-4ca4-802c-c9ba1189bbd9

SCIP dossier product name

AMV(E) 25 SU/SD

Speed type

Standard

Spindle speed [s/mm]

15 s/mm

Spring down (return)

Yes

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

15 mm

Supply voltage [V]

24 V AC

Turn time per 90° [s]

0 "
