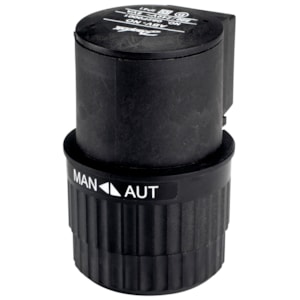

BỘ TRUYỀN ĐỘNG ĐIỆN DANFOSS ABV, Supply voltage [V] AC: 230 - C/N 082F6003

Gross weight

0.32 Kilogram

Net weight

0.308 Kilogram

Volume

0.5 Liter

EAN

5702421510100

Type

ABV

Product group

Electrical actuators

Actuator speed [s/mm]

540 s/mm

Actuator type

Thermo-pneumatic

Ambient temperature [°C] [max]

60 °C

Ambient temperature [°C] [min]

0 °C

Application

flow temperature

China RoHS compliance

Out of scope

Contains batteries

No

Control signal type

2-point

Description

ABV NC-220V

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

Grade of enclosure

IP41

Manual operation

Yes

Power consumption [W]

9 W

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

6dbf9109-1117-4e8b-b477-7e109d7fd8d1

SCIP dossier product name

ABV NC

Speed type

Standard

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Supply voltage [V] AC

230 V
