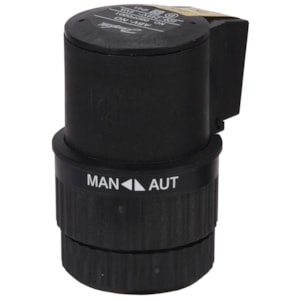

BỘ TRUYỀN ĐỘNG ĐIỆN DANFOSS ABV, Supply voltage [V] AC: 24 - C/N 082F0002

Gross weight

0.302 Kilogram

Net weight

0.302 Kilogram

Volume

0.553 Liter

EAN

5702421509302

Type

ABV

Product group

Electrical actuators

Actuator speed [s/mm]

540 s/mm

Actuator type

Thermo-pneumatic

Ambient temperature [°C] [max]

60 °C

Ambient temperature [°C] [min]

0 °C

Application

flow temperature

China RoHS compliance

Out of scope

Contains batteries

No

Control signal type

2-point

Description

ABV NO-24V AKTU

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

Grade of enclosure

IP41

Manual operation

Yes

Power consumption [W]

9 W

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

47df829c-6842-4311-93e6-50be967c8c03

Speed type

Standard

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Supply voltage [V] AC

24 V

Turn time per 90° [s]

0 "
