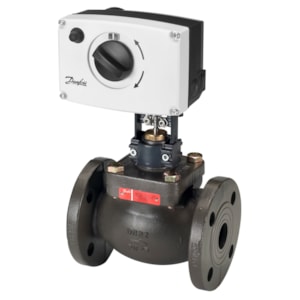

VAN DANFOSS VFS 2, PN 25, DN 50, 40 m³/h, Flange - C/N 065B1550

Mã sản phẩm: 065B1550

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VFS 2, PN 25, DN 50, 40 m³/h, Flange - C/N 065B1550

Product details

Application	Steam
Application alternative VSP	Chilled water
China RoHS compliance	Out of scope
Connection types	Flange
Contains batteries	No
Control ratio	100:1
Description	VFS 2 PN25 50/40 2-way seated flange
Diameter [mm]	50 mm
Differential pressure range [bar] [Max]	4 bar
EU RoHS compliance	Out of scope
Flow characteristic	Equal percentage
Kvs values [m³/h]	40 m³/h
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	200 °C
Media temperature [°C] [Min]	-10 °C
Medium alternative	Glycolic water up to 50%
Medium alternative 2	Steam
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	16
Pressure class	PN 25
Pressure nominal [bar]	25 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	07c8fcdc-0f15-4307-9daf-fdba8d7d90ee
SCIP dossier product name	VFS 2 PN25 50/40 2-way seated flange
Stroke [mm]	15 mm
Valve body material	Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material	Stainless steel
Valve size	DN 50
