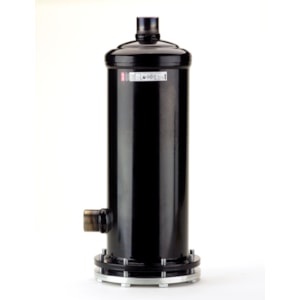

VỎ LỌC DANFOSS DCR 04813s - C/N 023U7255

Gross weight

5.13 Kilogram

Net weight

4.676 Kilogram

Volume

12.529 Liter

EAN

5702428249645

Type

DCR

Product group

Filter driers

Product Name Description

Filter drier, shell

Approval

CE
CSA
UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

CE mark

Yes

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection material

Copper

Connection Solder size [in]

1 5/8 in

Connection type

Solder, ODF

Contains batteries

No

Core Size code

48 cu.in.

Cover

Plug

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

Liq Cap [Kw]

R1234ze: 204.5
R134a: 230.3
R404A: 162.0
R407C: 236.0
R410A: 239.6
R452A: 164.0
R507: 157.1

Liq Cap [TR]

R1234ze: 58.1
R134a: 65.5
R404A: 46.1
R407C: 67.1
R410A: 68.1
R452A: 46.6
R507: 44.7

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar
tliq= 30°C
tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi
tliq= 86°F
tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Net volume [foz US]

50.44 Fluid Ounce US

Net volume [l]

1.492 L

Number of cores

1

Oil free refrigerants

R134a
R513A
R515A

Packing format

Single pack

Parts included

1 cov
2 felt gaskets
8 Bolts

Parts Program name

DCR

PED category

I

Product accessories

DCR accessories

Product description

Refrigerant Filter Drier

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R1234ze(E)
R125
R134a
R22/R407C
R23
R404A
R407A
R407F
Read more

Serviceable

DCR spare parts

Shell volume [foz US]

65.76 Fluid Ounce US

Shell volume [l]

1.94 L

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type designation

DCR 04813s

UL approval file name

SA6398

UL approved refrigerants

R125
R134a
R22
R23
R404A
R407A
R407C
R407F
Read more

UL mark

Yes
