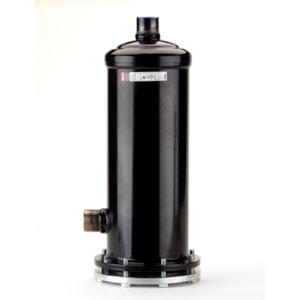

VỎ LỌC DANFOSS DCR 04811s - C/N 023U7254

Gross weight

5.378 Kilogram

Net weight

4.619 Kilogram

Volume

11.408 Liter

EAN

5702428249638

Type

DCR

Product group

Filter driers

Product Name Description

Filter drier, shell

Approval

CE; CSA; UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

CE mark

Yes

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection material

Copper

Connection Solder size [in]

1 3/8 in

Connection Solder size [mm]

35 mm

Connection type

Solder, ODF

Contains batteries

No

Core Size code

48 cu.in.

Cover

Plug

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

Liq Cap [Kw]

R1234ze: 182.0; R134a: 205.0; R404A: 144.2; R407C: 210.1; R410A: 213.3; R452A: 146.0; R507: 139.8

Liq Cap [TR]

R1234ze: 51.8; R134a: 58.3; R404A: 41.0; R407C: 59.7; R410A: 60.7; R452A: 41.5; R507: 39.8

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar; tliq= 30°C; tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi; tliq= 86°F; tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Net volume [foz US]

50.44 Fluid Ounce US

Net volume [l]

1.492 L

Number of cores

1

Oil free refrigerants

R134a; R513A; R515A

Packing format

Single pack

Parts included

1 cov; 2 felt gaskets; 8 Bolts

Parts Program name

DCR

PED category

I

Product accessories

DCR accessories

Product description

Refrigerant Filter Drier

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R1234ze(E)
R125
R134a
R22/R407C
R23
R404A
R407A
R407F
Read more

Serviceable

DCR spare parts

Shell volume [foz US]

65.76 Fluid Ounce US

Shell volume [l]

1.94 L

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type designation

DCR 04811s

UL approval file name

SA6398

UL approved refrigerants

R125
R134a
R22
R23
R404A
R407A
R407C
R407F
Read more

UL mark

Yes
