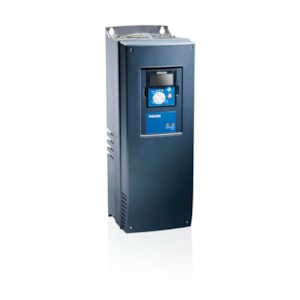

BIẾN TẦN DANFOSS NXP00385-A2H1SSV-A1A20000E2 - C/N 137X6731

Gross weight

19.5 Kilogram

Net weight

18.5 Kilogram

EAN

5715253854489

Product View (Switch)

GLBL

Global (Standard)

Product Group

NXP

NXP Frequency Converter

Customized Drive

+BM26

Vacon Dark Grey NXP

Mechanical Modification

S

Standard air cooled drive

Mains voltage

5-

380 – 500 Vac (465-800 Vdc)

Current

0038

38 Amp

Control Keypad

A

Alpha-numeric display

Enclosure

2

IP21/NEMA1

EMC emission levels

H

IEC61800-3

Brake Chopper

1

Integrated Brake chopper

Electrical Modification

S

6-pulse with choke

Card Modifications

V-

DirectConn. w Varnished Boards

Shipping Package

+GSCB

Cardboard box as Shipping pack

Warranty

+WT01

Warranty 12/18 months

Gland Plate Option

+QGLC

Inch conduit plate

Option Slot A

A1

6DI,DO,2AI,1AO,+10Vr,+24V

Option Slot B

A2

2RO(NO/NC)

Option Slot C

00

No board

Option Slot D

00

No board

Option Slot E

E2

RS485 (Modbus/N2)

Firmware language package

+FL22

UK,FR,IT,ES,PT;WestEur

Documentation Level

+DQCK

Quick guide user manual

Documentation Lang. Preference

+DLUK

English

System Firmware

+FNP02

System software NXP

Software license

NONE

no software license

Application

+A000

No Special Application

Parameter Set

NONE

none

Motor Parameter Default

+LS50

Default Motor frequency 50HZ

Labeling options

+LPC1

no additional labels

Special BoM structure

+SPC0

Standard BoM Configuration

CE Approval

+GACE

CE Approval

UL Approval

+GAUL

UL approval

RCM Approval

+GACT

RCM Approval N16307

Marine approval

NONE

no marine approval

KC Approval

+GAKC

Korean Approval

Ukrainian Approval

+GAUA

Ukrainian Approval

EAC Approval

+GAEA

EAC Approval

Region

-R00

International (-R00)

Frame Size

FR06

Frame 06

Sub family identification

NONE

Normal customer ordered

Customer specific power variat

NONE

Normal power rating

Typecode Part 1

7DP-003852

Typecode Part 2

-000140530

Salestext

FR0600385-2H

FR0600385-2H

Modelcode01

NXP00385-A2H1SSV-

Modelcode02

A1A20000E2

Calculated Net Weight [kg]

18.5

Calculated Gross Weight [kg]

19.5

Motor Power Low Overload [kW]

18,5

18,5

Motor Power High Overload [kW]

15

15

Dimensions WxHxD [mm]

195X557X237

195X557X237

Continuous Current (NO) [A]

38

38

Continuous Current (HO) [A]

31

31

Product Catalog

NO_VIEW

NO VIEW

Prefix VXSNXLM

7

7

Platform VXSNXLM

D

D

Stock Code

7DP-003852

7DP-003852

check if complete

OK

OK

Salescode part 2

A1A20000E2

Help Counter

1

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Delivering plant

ERR01

ERR01

High Speed Drive Warning

NONE

Not Applicable
