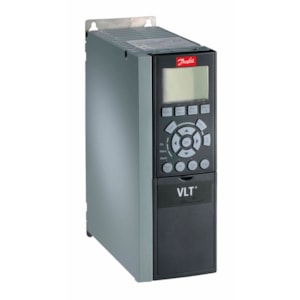

BIẾN TẦN DANFOSS FC-301P1K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX - C/N 131B0962

Gross weight

5.086 Kilogram

Net weight

4.24 Kilogram

Volume

21.569 Liter

EAN

5702427177055

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

301

301

Power Rating

P1K5

(P1K5) 1.5 KW / 2.0 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-301P1K5T4E20H1XGC

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

1.5

1.5

Height [mm]

268,0

268,0

Width w/ no C options [mm]

90,0

90,0

Width w/ two C options [mm]

150,0

150,0

Depth [mm]

205,0

205,0

Depth with Option A/B [mm]

220,0

220,0

kVA

2.84

2.84

Power Loss HO [W]

62

62

Power Loss HO [W]

62

62

Continuous Current (HO) [A]

4.1

4.1

Intermittent Current (HO) [A]

6.56

6.56

Continuous Current (HO) [A]

3.4

3.4

Intermittent Current (HO) [A]

5.44

5.44

Calculated Gross Weight [kg]

5.086

Calculated Net Weight [kg]

4.24

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-301P1K5T4E20H1XGC

Modelcode02

XXXSXXXXAXBXCXXXXDX

Delivering plant

ERR01

ERR01
