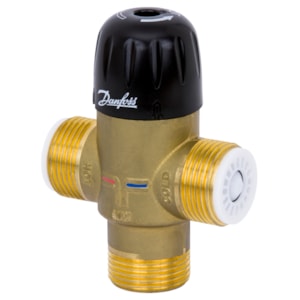

VAN DANFOSS TVM-W, DN 20 - C/N 003Z3145

Gross weight

0.416 Kilogram

Net weight

0.35 Kilogram

Volume

0.488 Liter

EAN

5702425101700

Type

TVM-W

Product group

Hot water balancing

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

TVM-W DN 20, thermostatic mixing valve

Differential pressure range [bar] [Max]

5 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [°C]

50 °C

Integrated non-return valve

Yes

Kvs value with non-return valve [m3/h]

2.1 m³/h

Label product

Yes

Media temperature [°C] [Max]

90 °C

Pressure class

PN 10

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

RoHS Compliant

Out of scope

SCIP dossier no.

053b7914-9873-46c2-9c7f-7244cdc4e115

SCIP dossier product name

"003Z3145"

Temperature setting range [°C] [Max]

70 °C

Temperature setting range [°C] [Min]

35 °C

Valve body material

DZR brass + antilimescale treatment

Valve size

DN 20
