VAN DANFOSS TVM-H, DN 25 - C/N 003Z1127

Gross weight

0.774 Kilogram

Net weight

0.774 Kilogram

Volume

0.48 Liter

EAN

5702421524756

Type

TVM-H

Product group

Hot water balancing

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

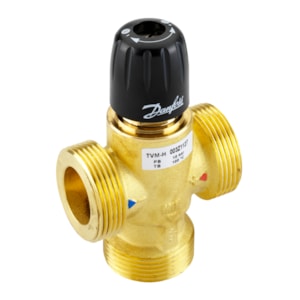

TVM-H DN 25, thermostatic mixing valve

Differential pressure range [bar] [Max]

5 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [°C]

70 °C

Integrated non-return valve

No

Kvs value with non-return valve [m3/h]

2.6 m³/h

Kvs value without non-return valve [m3/h]

3 m³/h

Label product

Yes

Media temperature [°C] [Max]

100 °C

Pressure class

PN 10

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

ff9b3c80-0d59-4769-9d4d-1d6a017826bf

SCIP dossier product name

"003Z1127"

Temperature setting range [°C] [Max]

70 °C

Temperature setting range [°C] [Min]

30 °C

Valve body material

DZR brass + antilimescale treatment

Valve size

DN 25
