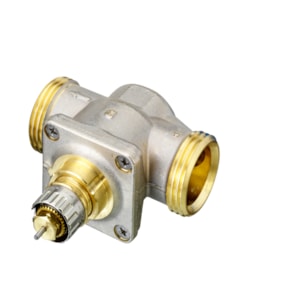

VAN DANFOSS RA-C, DN 20, REN NGOÀI - C/N 013G3096
Product details
|
Gross weight |
0.44 Kilogram |
|
Net weight |
0.419 Kilogram |
|
Volume |
0.385 Liter |
|
EAN |
5702420036403 |
|
Type |
RA-C |
|
Product group |
Other valves |
|
China RoHS compliance |
Out of scope |
|
Connection types |
External Thread |
|
Contains batteries |
No |
|
Description |
RA-C DN 20, External thread, control valve |
|
Differential pressure range [bar] [Max] |
0.6 bar |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(c) |
|
Kvs values [m³/h] |
3.3 m³/h |
|
Media temperature [°C] [Max] |
120 °C |
|
Media temperature [°C] [Min] |
-10 °C |
|
Pressure class |
PN 16 |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
SCIP dossier no. |
7e8ea5fa-8f56-4f00-afd3-6709b5570d1d |
|
SCIP dossier product name |
RA-C DN20, Cooling valve |
|
Valve body material |
DZR brass |
|
Valve size |
DN 20 |
