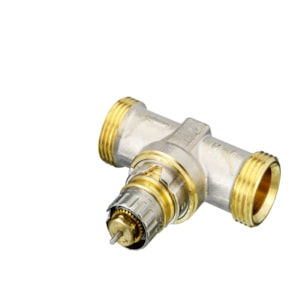

VAN DANFOSS RA-C, DN 15 REN NGOÀI - C/N 013G3094

Gross weight

0.222 Kilogram

Net weight

0.003 Kilogram

Volume

0.256 Liter

EAN

5702420031507

Type

RA-C

Product group

Other valves

China RoHS compliance

Out of scope

Connection types

External Thread

Contains batteries

No

Description

RA-C DN 15, External thread, control valve

Differential pressure range [bar] [Max]

0.6 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

1.2 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

8cc51032-0f02-49e1-8006-3dc35f92727e

SCIP dossier product name

RA-C DN15, Cooling valve

Valve body material

DZR brass

Valve size

DN 15
