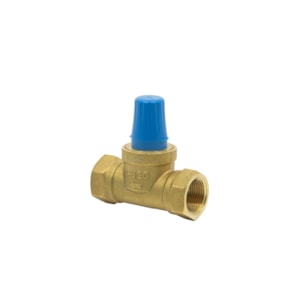

VAN DANFOSS RA-HC, DN 25 - C/N 003Z3921

Gross weight

0.52 Kilogram

Net weight

0.534 Kilogram

Volume

0.566 Liter

EAN

5702420117386

Type

RA-HC

Product group

Other valves

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection types

Internal thread

Contains batteries

No

Description

RA-HC DN 25, Internal thread, without test plugs, control valve

Differential pressure range [bar] [Max]

1 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

5.5 m³/h

Media temperature [°C] [Max]

100 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Test plugs

Without test plugs

Valve body material

DZR brass

Valve size

DN 25
