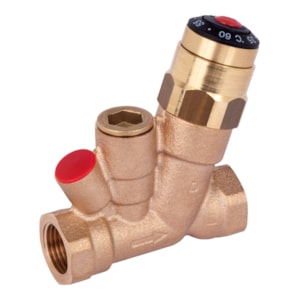

VAN CÂN BẰNG NHIỆT DANFOSS MTCV, Version: A, DN 20, PZH; ACS - C/N 003Z0540

Gross weight

0.62 Kilogram

Net weight

0.616 Kilogram

Volume

0.514 Liter

EAN

5710104011462

Type

MTCV

Product group

Hot water balancing

Approval type

ACS; PZH

China RoHS compliance

Out of scope

Connection types

Internal thread ISO 7/1; Rp ½

Contains batteries

No

Description

MTCV DN 20, A version, retrofit, multifunctional thermostatic circulation valve

Differential pressure over the valve [kPa] [Max]

100 KPa

Disinfection function

No

EU RoHS compliance

Out of scope

Factory setting [°C]

50 °C

Kvs values [m³/h]

1.8 m³/h

Media temperature [°C] [Max]

100 °C

Pressure class

PN 10

Temperature setting range [°C] [Max]

60 °C

Temperature setting range [°C] [Min]

35 °C

Valve body material

Rg5

Valve size

DN 20

Version

A
