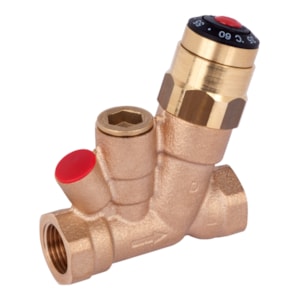

VAN CÂN BẰNG NHIỆT DANFOSS MTCV, Version: A, DN 15, N/A - C/N 003Z0535

Gross weight

0.584 Kilogram

Net weight

0.584 Kilogram

Volume

0.535 Liter

EAN

5710104011455

Type

MTCV

Product group

Hot water balancing

Approval type

N/A

China RoHS compliance

Out of scope

Connection types

Internal thread ISO 7/1; Rp ½

Contains batteries

No

Description

MTCV DN 15, A version, retrofit, multifunctional thermostatic circulation valve

Differential pressure over the valve [kPa] [Max]

100 KPa

Disinfection function

No

EU RoHS compliance

Out of scope

Factory setting [°C]

50 °C

Kvs values [m³/h]

1.5 m³/h

Media temperature [°C] [Max]

100 °C

Pressure class

PN 10

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Temperature setting range [°C] [Max]

60 °C

Temperature setting range [°C] [Min]

35 °C

Valve body material

Rg5

Valve size

DN 15

Version

A
