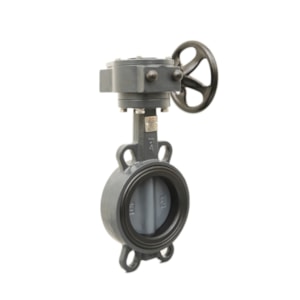

VAN DANFOSS VFH2-WG, DN 450 - C/N 003Z4214

Gross weight

105 Kilogram

Net weight

105 Kilogram

Volume

360.161 Liter

EAN

5710104522111

Type

VFH2-WG

Product group

Butterfly valves

Application

Heating and cooling

China RoHS compliance

Out of scope

Connection types

Wafer

Contains batteries

No

Description

VFH2 -WG DN 450, Butterfly valve, Manual - Worn Gear, PN16

Differential pressure [bar] [max]

16 bar

EU RoHS compliance

Out of scope

Kvs values [m³/h]

18600 m³/h

Leakage rate [% Kvs]

Leakage rate A

Media temperature [°C] [Max]

95 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Operating torque [Nm]

1600 N-m

Operation type

Worm Gear

Position indicator

Yes

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Rotation angle [°]

90 °

SCIP dossier no.

f0e7124b-601c-40c5-8d30-1a4a024dae92

SCIP dossier product name

VHF2 manual valves Wafer type Worm Gear DN350-600

Valve body material

Ductile iron (DIN GGG40)

Valve disc material

Nylon coated

Valve size

DN 450

Valve type

Manual butterfly valve
