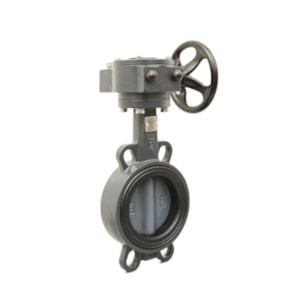

VAN DANFOSS VFH2-WG, DN 100 - C/N 003Z2406

Gross weight

9.94 Kilogram

Net weight

9.94 Kilogram

Volume

21.017 Liter

EAN

5710104522036

Type

VFH2-WG

Product group

Butterfly valves

Application

Heating and cooling

China RoHS compliance

Out of scope

Connection types

Wafer

Contains batteries

No

Description

VFH2 -WG DN 100, Butterfly valve, Manual - Worn Gear, PN16

Differential pressure [bar] [max]

16 bar

EU RoHS compliance

Out of scope

Kvs values [m³/h]

569 m³/h

Leakage rate [% Kvs]

Leakage rate A

Media temperature [°C] [Max]

95 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Operating torque [Nm]

50 N-m

Operation type

Worm Gear

Position indicator

Yes

Pressure class

PN 16

Rotation angle [°]

90 °

Valve body material

Ductile iron (DIN GGG40)

Valve disc material

Nylon coated

Valve size

DN 100

Valve type

Manual butterfly valve
