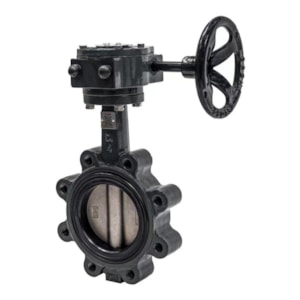

VAN DANFOSS VFH2-LG, DN 500 - C/N 003Z5415

Gross weight

172.22 Kilogram

Net weight

172.22 Kilogram

Volume

457 Liter

EAN

5715162494882

Type

VFH2-LG

Product group

Butterfly valves

Application

Heating and cooling

China RoHS compliance

Out of scope

Connection types

Lug

Contains batteries

No

Description

VFH2 -LG DN 500, Butterfly valve, Manual - Worm Gear, PN16

Differential pressure [bar] [max]

16 bar

EU RoHS compliance

Out of scope

Kvs values [m³/h]

23915 m³/h

Leakage rate [% Kvs]

Leakage rate A

Media temperature [°C] [Max]

95 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Operating torque [Nm]

1600 N-m

Operation type

Worm Gear

Position indicator

Yes

Pressure class

PN 16

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Rotation angle [°]

90 °

SCIP dossier no.

794f0862-7407-4f6a-ba62-527aade0fd36

SCIP dossier product name

VHF2 manual valves Lug/Flange type Worm Gear DN350-600

Valve body material

Ductile iron (DIN GGG40)

Valve disc material

Stainless Steel

Valve size

DN 500

Valve type

Manual butterfly valve
