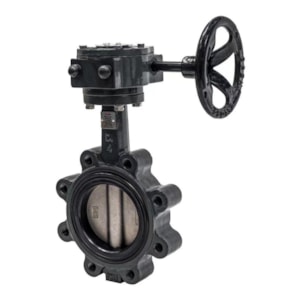

VAN DANFFOSS VFH2-LG, DN 150 - C/N 003Z5408

Gross weight

14.24 Kilogram

Net weight

14.24 Kilogram

Volume

25.7 Liter

EAN

5715162466612

Type

VFH2-LG

Product group

Butterfly valves

Application

Heating and cooling

China RoHS compliance

Out of scope

Connection types

Lug

Contains batteries

No

Description

VFH2 -LG DN 150, Butterfly valve, Manual - Worm Gear, PN16

Differential pressure [bar] [max]

16 bar

EU RoHS compliance

Out of scope

Leakage rate [% Kvs]

Leakage rate A

Media temperature [°C] [Max]

95 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Operating torque [Nm]

100 N-m

Operation type

Worm Gear

Position indicator

Yes

Pressure class

PN 16

Rotation angle [°]

90 °

Valve body material

Ductile iron (DIN GGG40)

Valve disc material

Stainless Steel

Valve size

DN 150

Valve type

Manual butterfly valve
