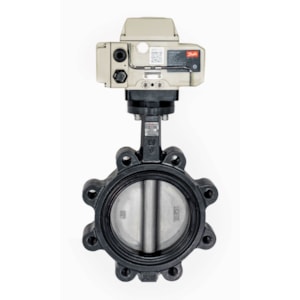

VAN DANFOSS VFH2-LAO, DN 400 - C/N 003Z6390

Mã sản phẩm: 003Z6390

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VFH2-LAO, DN 400 - C/N 003Z6390

Product details

Ambient temperature [°C] [min]	-10 °C
Application	Heating and cooling
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Connection types	Lug
Contains batteries	No
Control signal type	On/Off
Description	VFH2 -LAO DN 400, Butterfly valve, Motorized On/off, PN16
Differential pressure [bar] [max]	10 bar
EEE category	5 small equipment (any external dimension < 50 cm)
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Frequency [Hz]	50 Hz
In scope of WEEE	Yes
IP protection class	IP67
Kvs values [m³/h]	14042 m³/h
Leakage rate [% Kvs]	Leakage rate A
Manual operation	Yes
Media temperature [°C] [Max]	95 °C
Media temperature [°C] [Min]	-10 °C
Medium alternative	Glycolic water up to 50%
Operating torque [Nm]	1000 N-m
Operation type	Actuator
Position indicator	No
Power consumption [W]	140 W
Pressure class	PN 16
Protection Class of the Coating	II
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Rotation angle [°]	90 °
SCIP dossier no.	eca27890-9bdc-44a4-9a25-3193e42b806c
SCIP dossier product name	Motorized VHF2 ON/OFF butterfly valves DN350-600
Supply voltage [V] AC	220 V
Valve body material	Ductile iron (DIN GGG40)
Valve disc material	Stainless Steel
Valve size	DN 400
Valve type	Motorized butterfly valve
