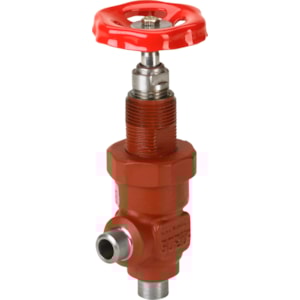

VAN CHẶN DANFOSS SVA-S 10 - C/N 148B5120

Mã sản phẩm: 148B5120

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN CHẶN DANFOSS SVA-S 10 - C/N 148B5120

Product details

Gross weight	0.602 Kilogram
Net weight	0.45 Kilogram
Volume	0.905 Liter
EAN	5702428468565
Type	SVA-S 10
Product group	Shut-off and regulating valves
Product Name Description	Shut-off valve

Approval	EAC; LLC CDC TYSK
Body material	Steel
Brand	SVL Flexline
CE mark	Yes
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1; 7.2
Colour Paint	Reddish brown
Connection material	Steel
Connection standard	ASME B 36.10M SCHEDULE 80
Contains batteries	No
Cv value [gal/min]	5.2 gal/min
Direction	Angleway
Equipment	Handwheel
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b)
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Inlet connection size [in]	3/8 in
Inlet connection size [mm]	10 mm
Inlet connection type	Butt weld
Kv value [m³/h]	4.5 m³/h
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Neck	Standard
Outlet connection size [in]	3/8 in
Outlet connection size [mm]	10 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	SVA-S / SVA-L
PED category	Art. 3, par. 3
Product accessories	SVL Flexline accessories
Product description	Stop valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R113; R114; R1234yf; R1234ze(E); R125 ; R1270; R1336mzz(Z); R134a; Read more
SCIP dossier no.	b095c3f5-98c7-41bb-8596-f3bb1f50ef02
SCIP dossier product name	SVA
Serviceable	SVL Flexline spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-76 °F
Valve version	Standard version
