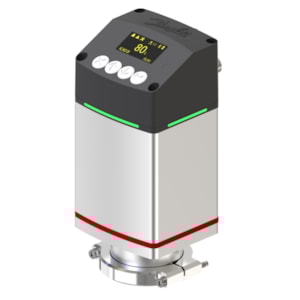

ĐỘNG CƠ VAN DANFOSS ICAD 600B - C/N 027H0485

Gross weight

2.03 Kilogram

Net weight

1.65 Kilogram

Volume

7.27 Liter

EAN

5715162687208

Type

ICAD 600B

Product group

Press. and temp. regul. valves

Product Name Description

Actuator

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Analog input current opt. [mA] [max]

20 mA

Analog input current opt. [mA] [min]

4 mA

Analog input Volt opt. [V] d.c [max]

10 V

Analog input Volt opt. [V] d.c [min]

2 V

Analog output options [mA] [max]

20 mA

Analog output options [mA] [min]

4 mA

Approval document

FCC ID: Y82-DA14531MOD; IC: 9576A-DA14531MOD; CMIIT ID: 24J99ET9A003

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1; 7.2

Communication type

Bluetooth; Display; RS485

Contains batteries

No

Dig. Output-Ext supply [V] d.c [max]

24 V

Dig. Output-Ext supply [V] d.c [min]

5 V

Digital Output-Load [Ohm]

60 Ohm

Digital Output-Max Load [mA]

50 mA

Digital outputs (DO) [pc]

3 pc

Display type

OLED

Electrical connector

M12

Enclosure rating IP

IP67

Enclosure rating Nema (~)

6

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b)

Function

Digital output

Load Analog input Current[Ohm]

250 Ohm

Load Analog input Voltage[Ohm]

10000 Ohm

Load Analog output max [Ohm]

500 Ohm

Output configuration

Open drain

Packing format

Single pack

Parts Program name

ICM

Power supply

Class 2

Product accessories

ICAD accessories

Product description

Electric Actuator

Product version

01

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

aaf4df04-232e-4c2f-a798-03522fc35abf

SCIP dossier product name

ICAD

Supply voltage [V] DC

24 V

Supply voltage load [A]

1.2 A

Supply voltage tolerance [%] [max]

10 %

Supply voltage tolerance [%] [min]

-15 %

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

UL mark

Yes

Used for product

ICM 20; ICM 25; ICM 32
