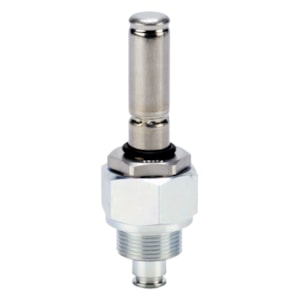

PHỤ TUNG VAN PILOT DANFOSS EVM - C/N 027B1132

Gross weight

248.13 Gram

Net weight

231.8 Gram

Volume

0.206 Liter

EAN

5702428819039

Type

EVM

Product group

Press. and temp. regul. valves

Product Name Description

Pilot valve

Actuator system [mm]

13.5 mm

Ambient temperature

-30 - 50 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

LLC CDC TYSK; UL

Body material

Steel

China RoHS compliance

Yes

China RoHS exemption clause

No

Coil

No

Contains batteries

No

Cv value [gal/min]

0.136 gal/min

Direction

None

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Function

NO

Inlet connection type

Thread

Kv value [m³/h]

0.118 m³/h

Manual operation option

No

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

MaxOPD[bar] 10W AC

40 bar

MaxOPD[bar] 20W AC

40 bar

MaxOPD[psi] 10W AC

580 psi

MaxOPD[psi] 20W AC

580 psi

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-60 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-76 °F

Orifice size [mm]

1.8 mm

Packing format

Multi pack

Parts Program name

CVH; ICS

Product accessories

Pilot valve accessories

Quantity per packing format

20 pc

REACH Candidate List substances

No

Refrigerants

R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; Read more

Serviceable

No

Type designation

Solenoid valve

UL mark

Yes

Valve operation

Servo-piston
