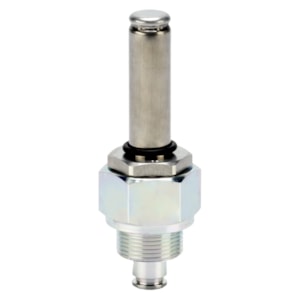

VAN PILOT DANFOSS EVMP - C/N 027B1123

Gross weight

0.241 Kilogram

Net weight

0.227 Kilogram

Volume

0.211 Liter

EAN

5702422133339

Type

EVMP

Product group

Press. and temp. regul. valves

Product Name Description

Pilot valve

Actuator system [mm]

13.5 mm

Ambient temperature

-50 - 50 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-58 °F

Approval

EAC; LLC CDC TYSK

Body material

Steel

China RoHS compliance

Yes

China RoHS exemption clause

No

Coil

No

Contains batteries

No

Cv value [gal/min]

0.29 gal/min

Direction

None

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Function

NC

Inlet connection type

Thread

Kv value [m³/h]

0.251 m³/h

Manual operation option

No

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

406 psig

MaxOPD[bar] 10W AC

8 bar

MaxOPD[psi] 10W AC

116 psi

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-50 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

-58 °F

Orifice size [mm]

2.4 mm

Packing format

Multi pack

Parts Program name

CVH; ICS

Pressure range [bar] Pe

28 bar

Product accessories

Pilot valve accessories

Quantity per packing format

20 pc

REACH Candidate List substances

No

Refrigerants

R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; Read more

Serviceable

No

Type designation

Solenoid valve

Valve operation

Servo-piston
