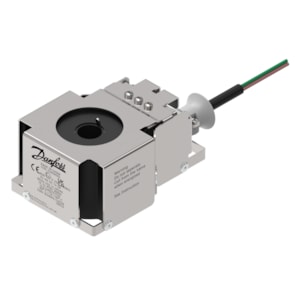

CUỘN ĐIỆN TỪ DANFOSS BI024D - C/N 018Z8596

Mã sản phẩm: 018Z8596

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CUỘN ĐIỆN TỪ DANFOSS BI024D - C/N 018Z8596

Product details

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	40 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	104 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX - Cat. 2 - Zone 1
Cable length [in]	196 in
Cable length [m]	5 m
China RoHS compliance	Out of scope
China RoHS exemption clause	No
Coil connection	Cable
Coil fastening	Finger screw
Coil winding insulation class	Class H to IEC 85
Colour	Black
Conductor area [mm2]	3 x 0.75 mm2
Contains batteries	No
Duty rating	Continuous
Earth connection	Ext. Terminal; Green/yellow wire
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	Earth conn. wiring > 4 mm2
Electrical connection	Cable
Electrical connector	3 core cable
Enclosure rating IP	IP67
Enclosure rating Nema (~)	6
EU RoHS compliance	Yes
EU RoHS exemption clause	No
EX Sales text	-40C<ta<+40C ; DEMKO 01 ATEX127938X ; Ex mb IIC T4 Gb ; IECEx ULD 21.0024X; UL 21 ATEX 2606X; UL21UKEX2374X
In scope of WEEE	Yes
Packing format	Multi pack
Parts included	IP67 seal kit
Parts Program name	AKV10P/PS; AKV15; AKV20; AKVA; EV210B 1,5 – 25; EV210BW 1,5 – 25; EV220B 6 – 100; EV220BW 15 -50; Read more
Power consumption [W] DC	12 W
Product accessories	Solenoid coil accessories
Quantity per packing format	10 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Serviceable	No
Supply voltage [V] DC	24 V
Type designation	BI024D
