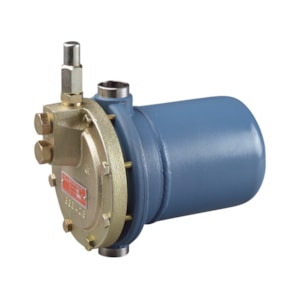

VAN PHAO DANFOSS SV 1 - C/N 027B2021

Mã sản phẩm: 027B2021

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN PHAO DANFOSS SV 1 - C/N 027B2021

Product details

Gross weight	10.074 Kilogram
Net weight	6.65 Kilogram
Volume	22.14 Liter
EAN	5702422043621
Type	SV 1
Product group	Liquid level regulating valves
Product Name Description	Float valve

Approval	CE; EAC; LLC CDC TYSK; UL
Balance pipe Solder conn. size	1 1/8 in
Balance pipe Weld conn. size	1 in
Body material	Low temperature steel
CE mark	Yes
China RoHS compliance	Out of scope
Connection material	Low temperature, steel
Contains batteries	No
Cv value [gal/min]	0.07 gal/min
EU RoHS compliance	Out of scope
Float housig material	Low temperature steel
Fluid Group	1; 2
Inlet connection size [mm]	25.7 mm
Kv value [m³/h]	0.06 m³/h
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Packing format	Single pack
PED category	I
Pilot line conn. size [mm]	OD Ø9,8/ID Ø6,8
Pilot line conn. size [mm]	OD Ø9,8/ID Ø6,8
Pilot line connection type	Welding
Product description	Float Valve
Quantity per packing format	1 pc
Rated cap. conditions [IMP]	+41 °F/+89,6 °F, sub. Cooling
Rated cap. conditions [SI]	+5 °C/+32 °C, sub. Cooling 4 K
Rated cap. R404A/R507A [kW]	3.7 kW
Rated cap. R404A/R507A [TR]	1.05 TR
Rated capacity R134a [kW]	3.9 kW
Rated capacity R134a [TR]	1.11 TR
Rated capacity R22 [kW]	4.7 kW
Rated capacity R22 [TR]	1.34 TR
Rated capacity R717 [kW]	25 kW
Rated capacity R717 [TR]	7.1 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; Read more
SCIP dossier no.	5afa1bd7-b40d-4068-a9f2-78f2cbcdaeb6
SCIP dossier product name	SV
Temperature range [°C] [max]	65 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	149 °F
Temperature range [°F] [min]	-58 °F
UL mark	Yes
