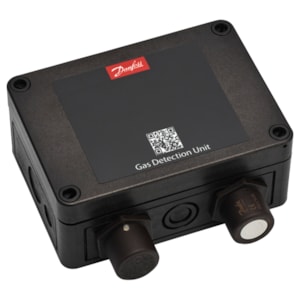

Thiết bị phân tích phát hiện rò rỉ gas - C/N 148H6009

Gross weight

0.365 Kilogram

Net weight

0.282 Kilogram

Volume

1.259 Liter

EAN

5714279919936

Type

Basic

Product group

Sensors

Product Name Description

Gas detection unit

Alarmlimits high [ppm] sensor1

150 ppm

Alarmlimits low [ppm] sensor1

25 ppm

China RoHS compliance

Yes

China RoHS exemption clause

No

Contains batteries

No

Division

40

Equipment

Buzzer & Light

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Frequency [Hz]

50/60 Hz

Gas detecting sensor version

Basic +

Packing format

Multi pack

Parts included

Cable gland; Complete unit; Mounting kit; Calibration certificate

PFAS content [Yes/No]

No

Power consumption [A]

0.25 A

Quantity per packing format

10 pc

REACH Candidate List substances

No

Refrig. range [ppm] sensor1 [max]

300 ppm

Refrig. range [ppm] sensor1 [min]

0 ppm

Refrigerants

R717

Relative humidity (RH) [%] [max]

90 %

Relative humidity (RH) [%] [min]

15 %

Response delay [s]

0 s

Sensor 1 type

Electrochemical

Supply voltage [V] AC [max]

29 V

Supply voltage [V] AC [min]

19 V

Supply voltage [V] DC [max]

29 V

Supply voltage [V] DC [min]

19 V

Temperature range [°C] [max]

50 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

122 °F

Temperature range [°F] [min]

-40 °F
