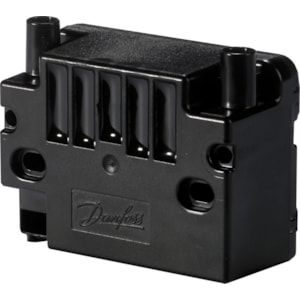

BIẾN THẾ ĐÁNH LỬA DANFOSS EBI4 1P - C/N 052F4240

Gross weight

0.235 Kilogram

Net weight

0.234 Kilogram

Volume

0.281 Liter

EAN

5702425074769

Type

EBI4 1P

Product group

Ignition Units

Ambient temperature [°C] [max]

60 °C

Ambient temperature [°C] [min]

-10 °C

Approval

CE; UKCA; UL

CE mark

Yes

China RoHS compliance

Yes

Contains batteries

No

Description

EBI4 1P STD. IGNITION UNIT 230 V OEM

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c); 7(c)-I

Grade of enclosure primary

IP40

Housing

Standard

Main fuse [A] [Min]

10 A

Packing format

Industrial pack

Power consumption [VA]

60 VA

Primary current [A]

0.25 A

Primary frequency [Hz]

50/60

Quantity per packing format

40 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

9bbbc11e-e994-4b41-a315-907e4ca9cc5d

SCIP dossier product name

Ignition unit EB14

Secondary connection, short circuit current [mA]

40 mA

Secondary peak voltage [kV]

12

Storage temperature [°C] [Max]

85 °C

Storage temperature [°C] [Min]

-25 °C

Supply voltage [V] AC

230 V

Supply voltage [V] AC [max]

255 V

Supply voltage [V] AC [min]

187 V

UL mark

Yes
