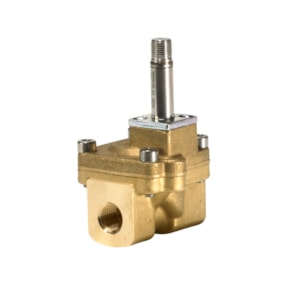

VAN ĐIỆN TỪ DANFOSS EV220A, Function: NC, NPT, 1/4, 1 m³/h, NBR - C/N 042U6003

Gross weight

0.552 Kilogram

Net weight

0.538 Kilogram

Volume

0.338 Liter

EAN

5702423139712

Type

EV220A

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

A

Actuator size

9 mm

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Body material

Brass

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/4

Connection standard

ANSI/ASME B1.20.1

Connection type

NPT

Contains batteries

No

Cv value [gal/min]

1.16 gal/min

Differential pressure [bar] [max]

16 bar

Differential pressure [bar] [min]

0.2 bar

Differential pressure [psi] [max]

232 psi

Differential pressure [psi] [min]

2.9 psi

Est. time to close, water [ms]

250 ms

Est. time to open, water [ms]

40 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

Kv value [m³/h]

1 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media recommendations

Water,Brine,Oil,Air

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

6 mm

Orifice size fraction [in]

1/4 in

Packing format

Multi pack

Parts Program name

EV220A

Product accessories

Solenoid valve accessories

Quantity per packing format

15 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

481e69a1-f151-484d-b74f-362eac5dc9de

SCIP dossier product name

Valve EV220A

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV220A 6B N 14N NC000

Type designation

EV220A 6
