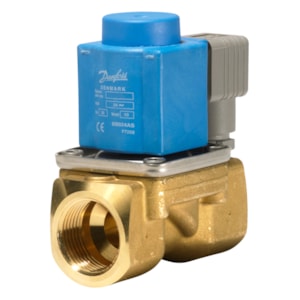

VAN ĐIỆN TỪ DANFOSS EV210B, Function: NC, G, 3/8, 0.3 m³/h, NBR - C/N 032U728132

Gross weight

0.517 Kilogram

Net weight

0.457 Kilogram

Volume

0.88 Liter

EAN

5702428447812

Type

EV210B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Closed and Drain

Approval

CE; DNVGL-CG-0339

Body material

Brass

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

0.35 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

20 ms

Est. time to open, water [ms]

20 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Frequency [Hz]

50/60 Hz

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

0.3 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

16 bar

Max. test pressure [psig]

232 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Water,Brine,Oil,Air

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

90 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

194 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

3 mm

Orifice size fraction [in]

1/8 in

Packing format

Multi pack

Parts Program name

EV210B

Power consumption [W] 50Hz

16 W

Power consumption [W] 60Hz

13 W

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

f39c9b5f-71a1-49e3-bc6d-20baa8f46870

SCIP dossier product name

EV210B brass NC - solenoid valve

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV210B 3B G 38N NC000 BB230CS

Supply voltage 50Hz Max [V]

230 V

Supply voltage 60Hz Max [V]

230 V

Supply voltage [V] AC

230 V

Type designation

EV210B 3
