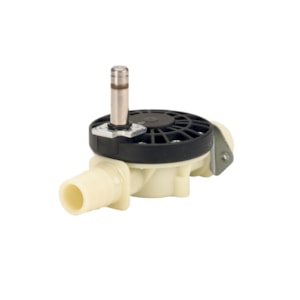

VAN ĐIỆN TỪ DANFOSS EV220T, Function: NC, GHH, 3/4, 4 m³/h, EPDM - C/N 042U8145

Gross weight

0.208 Kilogram

Net weight

0.164 Kilogram

Volume

1.295 Liter

EAN

5702428989473

Type

EV220T

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

T

Actuator size

9 mm clip-on T

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Approval

WRAS

Body material

Polymer

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

External

Connection material

Polymer

Connection size [in]

3/4

Connection type

GHH

Contains batteries

No

Cv value [gal/min]

4.6 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

145.038 psi

Differential pressure [psi] [min]

4.351 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Est. time to close, water [ms]

400 ms

Est. time to open, water [ms]

100 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

2

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

4 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

290 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Water & Brine

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

32 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

14 mm

Orifice size fraction [in]

4/16 in

Packing format

Multi pack

Parts Program name

EV220T

Product accessories

Solenoid valve accessories

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

702da5b9-fdc0-4987-a36b-2f0941b89788

SCIP dossier product name

EV220T- solenoid valve

Seal Material

EPDM

Serviceable

No

Specification key

EV220T 14P GHH E NC000

Type designation

EV220T 14
