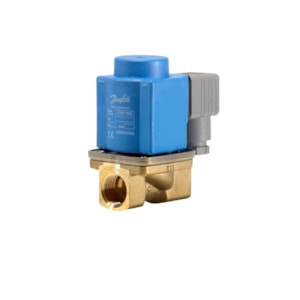

VAN ĐIỆN TỪ DANFOSS EV220B, Function: NC, NPT, 1/2, 2.5 m³/h, EPDM - C/N 032U758036

Gross weight

0.701 Kilogram

Net weight

0.663 Kilogram

Volume

0.88 Liter

EAN

5702428459839

Type

EV220B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Body material

Brass

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Coil option

Clip-on

Coil type

BY

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/2

Connection standard

ANSI/ASME B1.20.1

Connection type

NPT

Contains batteries

No

Cv value [gal/min]

2.9 gal/min

Differential pressure [bar] [max]

9.791 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

142 psi

Differential pressure [psi] [min]

4.351 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

300 ms

Est. time to open, water [ms]

60 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Frequency [Hz]

50/60 Hz

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

2.5 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

37.5 bar

Max. test pressure [psig]

544 psig

Max. Working Pressure [bar]

9.8 bar

Max. Working Pressure [psig]

142 psig

Media recommendations

Water & Brine

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

90 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

194 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

12 mm

Orifice size fraction [in]

1/2 in

Packing format

Multi pack

Parts Program name

EV220B 6 - 22

Power consumption [W] 50Hz

14 W

Power consumption [W] 60Hz

14 W

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

f440c2c1-98fa-405b-9256-d9b24590a97e

SCIP dossier product name

EV220B 6-22 brass NC - solenoid valve

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 12B N 12E NC000 BY120CS

Supply voltage 50Hz Max [V]

110 V

Supply voltage 60Hz Max [V]

120 V

Supply voltage 60Hz Min [V]

110 V

Supply voltage [V] AC

120 V

Type designation

EV220B 12
