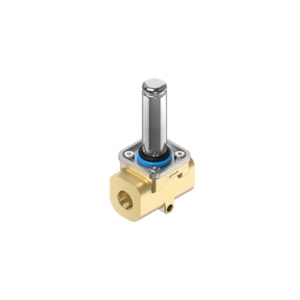

VAN ĐIỆN TỪ DANFOSS EV210B, Function: NC, G, 1/4, 0.7 m³/h, EPDM - C/N 032U3722

Gross weight

0.322 Kilogram

Net weight

0.29 Kilogram

Volume

0.253 Liter

EAN

5702428884617

Type

EV210B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Closed and Drain

Approval

DNVGL-CG-0339

Body material

Brass

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/4

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

0.8 gal/min

Differential pressure [bar] [max]

2.7 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

39 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension < 50 cm)

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

0.7 m³/h

Max. test pressure [bar]

16 bar

Max. test pressure [psig]

232 psig

Max. Working Pressure [bar]

2.7 bar

Max. Working Pressure [psig]

39 psig

Media recommendations

Water & Brine

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

6 mm

Orifice size fraction [in]

1/4 in

Packing format

Multi pack

Parts Program name

EV210B

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

f39c9b5f-71a1-49e3-bc6d-20baa8f46870

SCIP dossier product name

EV210B brass NC - solenoid valve

Seal Material

EPDM

Specification key

EV210B 6B G 14E NC672

Type designation

EV220B 12
